Baltimore Aircoil Evaporative Condenser (#69)
Size: 235 Ton
Model: VCA-331A
Condition: Used
This item is out of stock
Sale pending
Features:

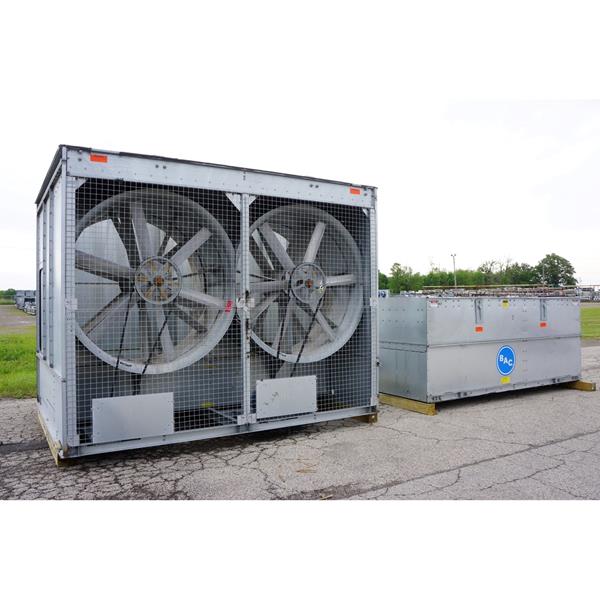

Baltimore Aircoil (BAC) Evaporative Condenser
- 235 Tons ammonia nominal rating.
- Unit includes (2) 7.5 HP fan motors @68,500 CFM.
- Steel coil construction, with drift eliminators included.
- Approximate overall dimensions: 10' x 13'6" x 13'10"H (ships in two pieces).
- Approximate shipping weight: 12,330 lbs.
- Approximate operating weight: 18,400 lbs.
- Heaviest section (coil): 8,360 lbs.
Specifications:
| Voltage/Phase: | 230/460 Volt, 3 Phase |
|---|---|
| Item: | Used 235 Tons Evaporative Condenser (Ammonia Nominal Rating) |
